Hi.
Running SMART Version: 7.5.10
Full Version: 7.5.10.202406061746

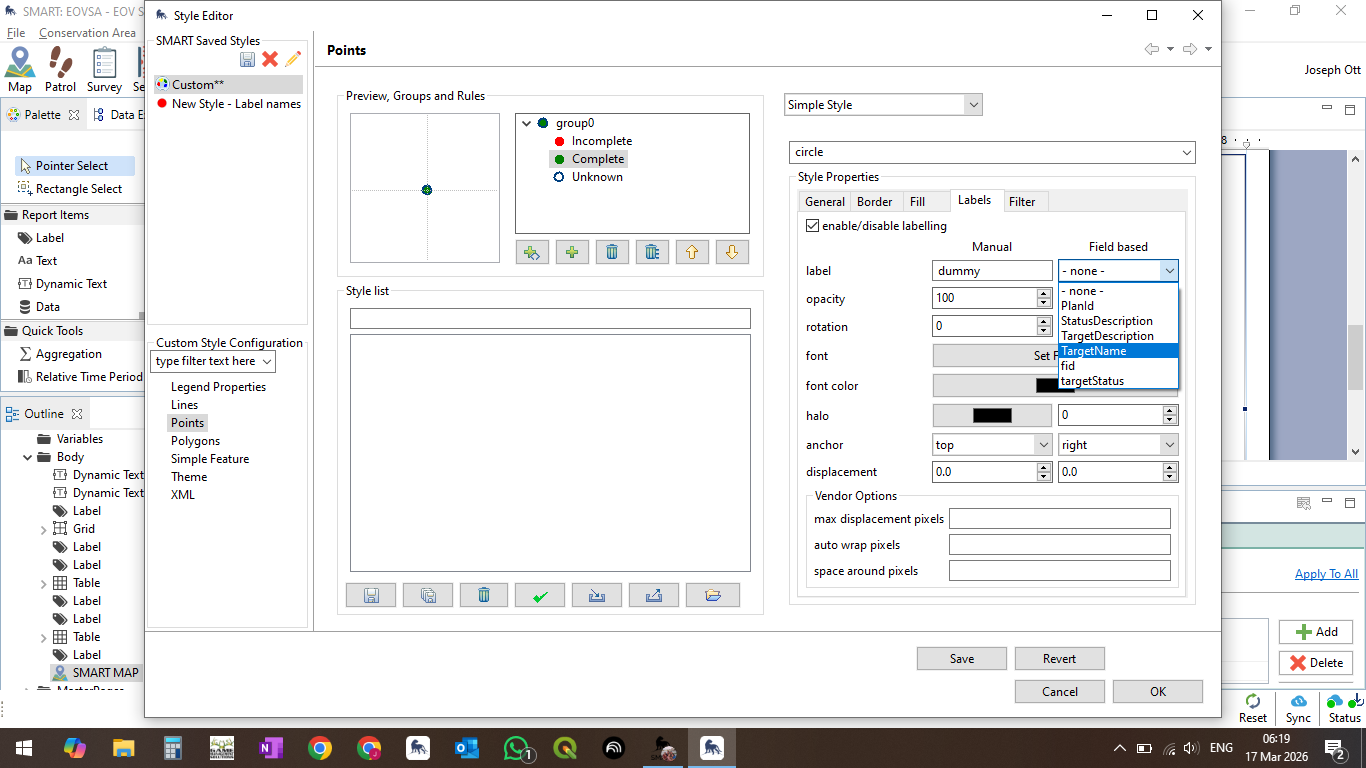

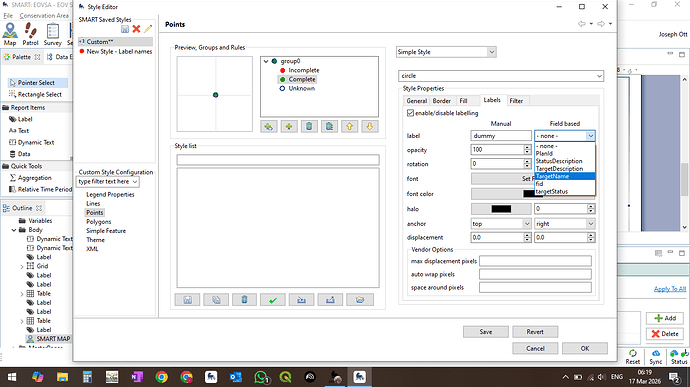

When I create a patrol plan in the template all works fine. But then if i want to edit the plan to have a label for each site that was completed and save I get a error message. Below is a screenshot of label.

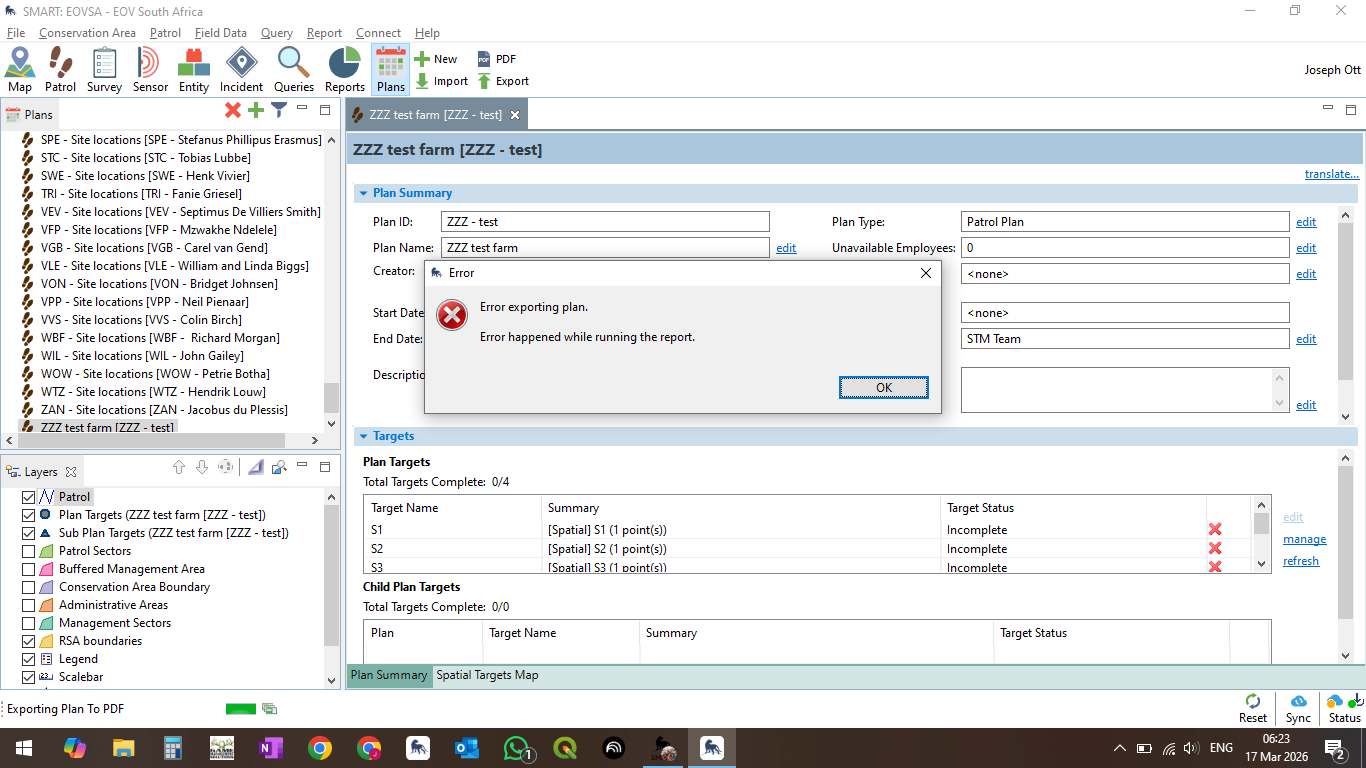

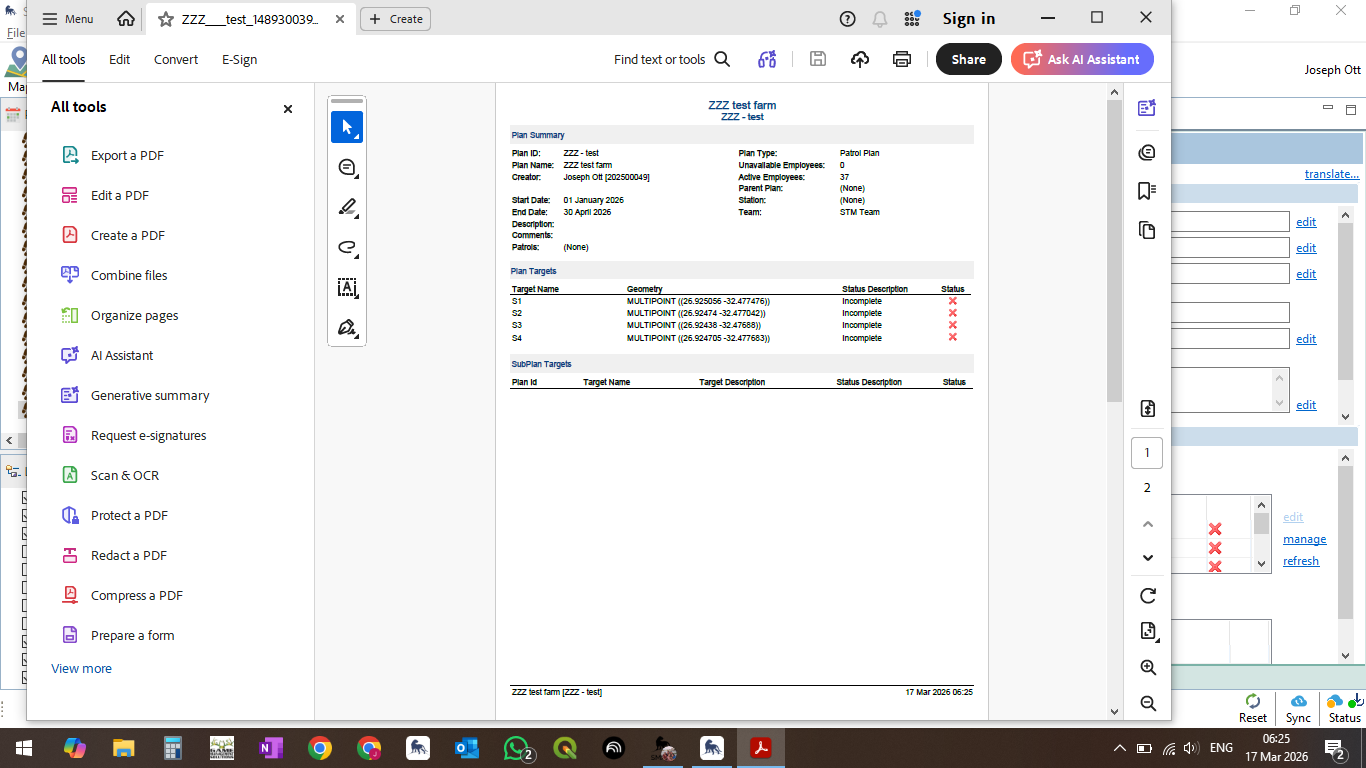

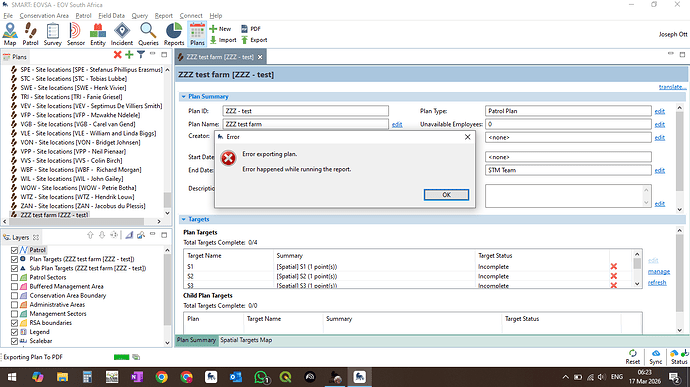

When i want to export my patrol plan to .pdf it gives me a error.
Hi Joseph,
Could you please share the error log so we can have a better understanding of the issue?
!ENTRY org.locationtech.udig.project 1 0 2026-03-20 17:10:49.390
!MESSAGE Smart Plan Targets rendering error:org.geotools.filter.IllegalFilterException: Could not find ‘TargetName’ in the FeatureType (smart:null), available attributes are: [the_geom, fid, Target_Name, Target_Description, Status_Description, targetStatus, Plan_Id]
!STACK 0
org.geotools.filter.IllegalFilterException: Could not find ‘TargetName’ in the FeatureType (smart:null), available attributes are: [the_geom, fid, Target_Name, Target_Description, Status_Description, targetStatus, Plan_Id]
at org.geotools.renderer.lite.StreamingRenderer.checkAttributeExistence(StreamingRenderer.java:2448)
at org.geotools.renderer.lite.StreamingRenderer.getFeatures(StreamingRenderer.java:2359)
at org.geotools.renderer.lite.StreamingRenderer.processStylers(StreamingRenderer.java:2235)
at org.geotools.renderer.lite.StreamingRenderer.paint(StreamingRenderer.java:907)
at org.geotools.renderer.lite.StreamingRenderer.paint(StreamingRenderer.java:630)
at org.locationtech.udig.render.internal.feature.basic.BasicFeatureRenderer.render(BasicFeatureRenderer.java:475)
at org.locationtech.udig.render.internal.feature.basic.BasicFeatureRenderer.render(BasicFeatureRenderer.java:119)
at org.wcs.smart.report.birt.map.execute.MapCreator.render(MapCreator.java:112)
at org.wcs.smart.report.birt.map.execute.MapCreator.drawMap(MapCreator.java:74)
at org.wcs.smart.report.birt.map.execute.MapItemExecutor.createMap(MapItemExecutor.java:615)
at org.wcs.smart.report.birt.map.execute.MapItemExecutor.executeQuery(MapItemExecutor.java:317)
at org.wcs.smart.report.birt.map.execute.MapItemExecutor.execute(MapItemExecutor.java:182)
at org.eclipse.birt.report.engine.executor.ExtendedItemExecutor.execute(ExtendedItemExecutor.java:62)
at org.eclipse.birt.report.engine.internal.executor.dup.SuppressDuplicateItemExecutor.execute(SuppressDuplicateItemExecutor.java:43)
at org.eclipse.birt.report.engine.internal.executor.wrap.WrappedReportItemExecutor.execute(WrappedReportItemExecutor.java:46)
at org.eclipse.birt.report.engine.internal.executor.l18n.LocalizedReportItemExecutor.execute(LocalizedReportItemExecutor.java:34)
at org.eclipse.birt.report.engine.layout.html.HTMLBlockStackingLM.layoutNodes(HTMLBlockStackingLM.java:65)
at org.eclipse.birt.report.engine.layout.html.HTMLPageLM.layout(HTMLPageLM.java:92)
at org.eclipse.birt.report.engine.layout.html.HTMLReportLayoutEngine.layout(HTMLReportLayoutEngine.java:100)
at org.eclipse.birt.report.engine.api.impl.RunAndRenderTask.doRun(RunAndRenderTask.java:178)
at org.eclipse.birt.report.engine.api.impl.RunAndRenderTask.run(RunAndRenderTask.java:74)
at org.wcs.smart.report.execute.SmartReportRunner.runFile(SmartReportRunner.java:200)
at org.wcs.smart.plan.report.ExportPlanJob.run(ExportPlanJob.java:137)
at org.eclipse.core.internal.jobs.Worker.run(Worker.java:63)
!ENTRY org.wcs.smart.plan 4 0 2026-03-20 17:10:49.399
!MESSAGE Error exporting plan.
Error happened while running the report.
!STACK 0
org.eclipse.birt.report.engine.api.EngineException: Error happened while running the report.
at org.eclipse.birt.report.engine.api.impl.EngineTask.handleFatalExceptions(EngineTask.java:2387)
at org.eclipse.birt.report.engine.api.impl.RunAndRenderTask.doRun(RunAndRenderTask.java:188)
at org.eclipse.birt.report.engine.api.impl.RunAndRenderTask.run(RunAndRenderTask.java:74)
at org.wcs.smart.report.execute.SmartReportRunner.runFile(SmartReportRunner.java:200)
at org.wcs.smart.plan.report.ExportPlanJob.run(ExportPlanJob.java:137)
at org.eclipse.core.internal.jobs.Worker.run(Worker.java:63)
Caused by: org.eclipse.birt.core.exception.BirtException
at org.wcs.smart.report.birt.map.execute.MapItemExecutor.execute(MapItemExecutor.java:184)
at org.eclipse.birt.report.engine.executor.ExtendedItemExecutor.execute(ExtendedItemExecutor.java:62)
at org.eclipse.birt.report.engine.internal.executor.dup.SuppressDuplicateItemExecutor.execute(SuppressDuplicateItemExecutor.java:43)
at org.eclipse.birt.report.engine.internal.executor.wrap.WrappedReportItemExecutor.execute(WrappedReportItemExecutor.java:46)
at org.eclipse.birt.report.engine.internal.executor.l18n.LocalizedReportItemExecutor.execute(LocalizedReportItemExecutor.java:34)
at org.eclipse.birt.report.engine.layout.html.HTMLBlockStackingLM.layoutNodes(HTMLBlockStackingLM.java:65)
at org.eclipse.birt.report.engine.layout.html.HTMLPageLM.layout(HTMLPageLM.java:92)
at org.eclipse.birt.report.engine.layout.html.HTMLReportLayoutEngine.layout(HTMLReportLayoutEngine.java:100)
at org.eclipse.birt.report.engine.api.impl.RunAndRenderTask.doRun(RunAndRenderTask.java:178)
… 4 more
Caused by: java.lang.reflect.InvocationTargetException
at org.wcs.smart.report.birt.map.execute.MapCreator.render(MapCreator.java:114)
at org.wcs.smart.report.birt.map.execute.MapCreator.drawMap(MapCreator.java:74)
at org.wcs.smart.report.birt.map.execute.MapItemExecutor.createMap(MapItemExecutor.java:615)
at org.wcs.smart.report.birt.map.execute.MapItemExecutor.executeQuery(MapItemExecutor.java:317)
at org.wcs.smart.report.birt.map.execute.MapItemExecutor.execute(MapItemExecutor.java:182)
… 12 more
Caused by: org.locationtech.udig.project.render.RenderException: Problem rendering: Could not find ‘TargetName’ in the FeatureType (smart:null), available attributes are: [the_geom, fid, Target_Name, Target_Description, Status_Description, targetStatus, Plan_Id]
at org.locationtech.udig.render.internal.feature.basic.BasicFeatureRenderer.render(BasicFeatureRenderer.java:504)
at org.locationtech.udig.render.internal.feature.basic.BasicFeatureRenderer.render(BasicFeatureRenderer.java:119)
at org.wcs.smart.report.birt.map.execute.MapCreator.render(MapCreator.java:112)
… 16 more
Caused by: org.geotools.filter.IllegalFilterException: Could not find ‘TargetName’ in the FeatureType (smart:null), available attributes are: [the_geom, fid, Target_Name, Target_Description, Status_Description, targetStatus, Plan_Id]
at org.geotools.renderer.lite.StreamingRenderer.checkAttributeExistence(StreamingRenderer.java:2448)
at org.geotools.renderer.lite.StreamingRenderer.getFeatures(StreamingRenderer.java:2359)
at org.geotools.renderer.lite.StreamingRenderer.processStylers(StreamingRenderer.java:2235)
at org.geotools.renderer.lite.StreamingRenderer.paint(StreamingRenderer.java:907)
at org.geotools.renderer.lite.StreamingRenderer.paint(StreamingRenderer.java:630)
at org.locationtech.udig.render.internal.feature.basic.BasicFeatureRenderer.render(BasicFeatureRenderer.java:475)
… 18 more
